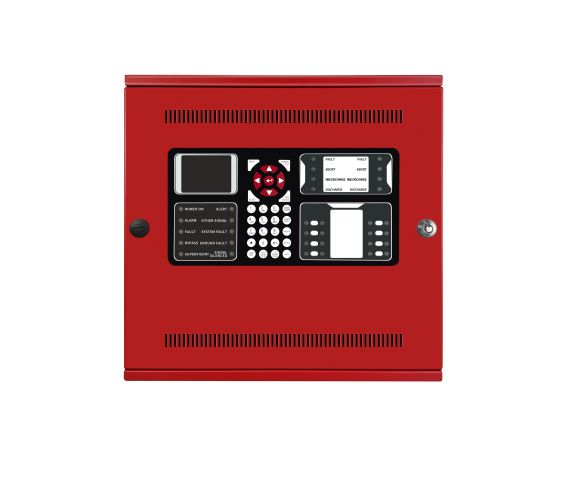

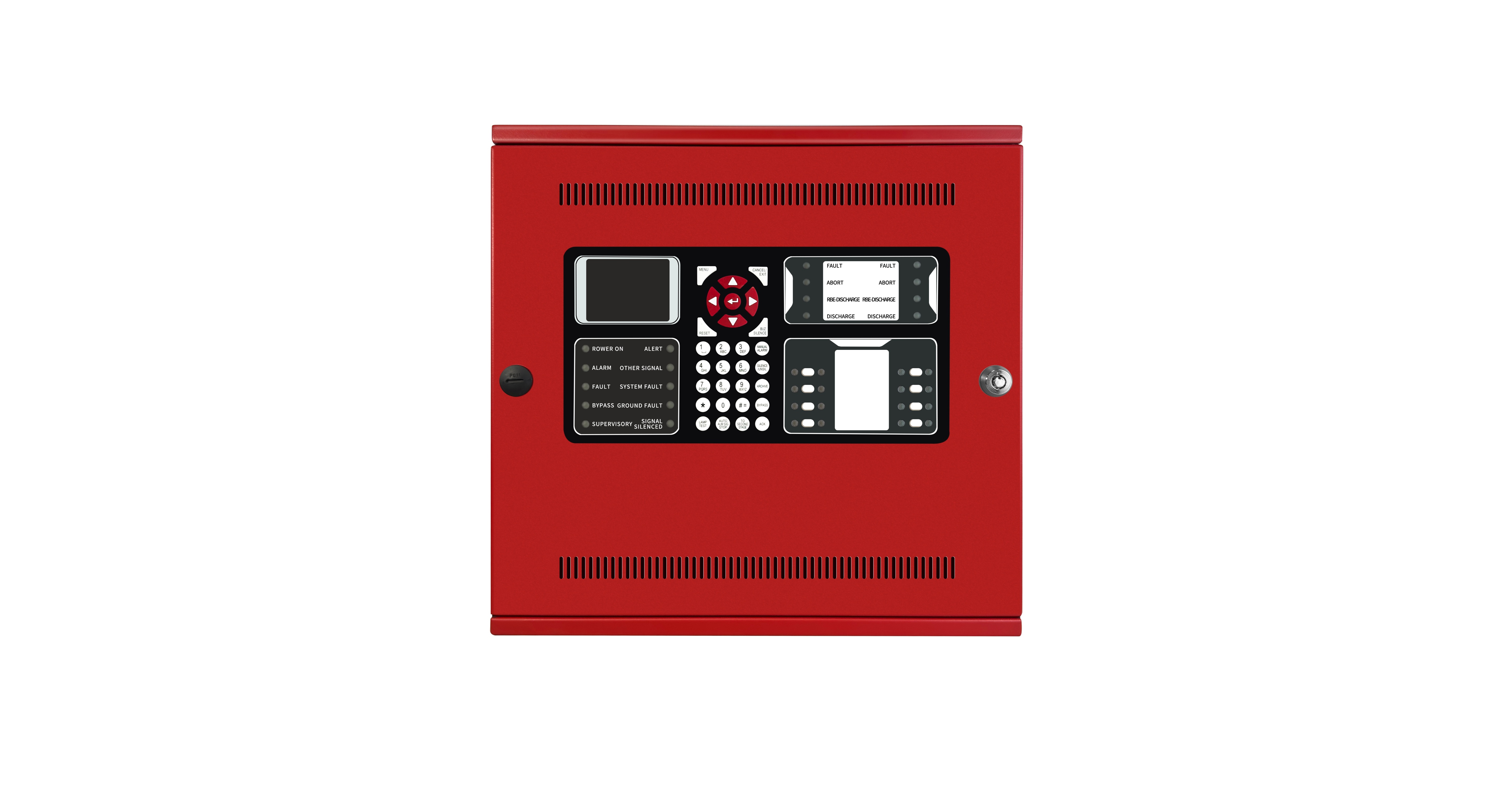

The FW2107M is an intelligent fire suppression control panel designed for fire suppression facilities. It can also be used as an Intelligent Fire Alarm Control Panel (FACP) for small to medium-sized facilities and fits standalone applications and multi-panel networks. It features a digital signal processor-based design that is fully configurable from the front panel with password protection.

The FW2107M control panel has one Signaling Line Circuit (SLC), two Notification Appliance Circuits (NACs), 3 Form C dry relay contacts dedicated for Alarm, Trouble, and Supervisory. The FW2822 addressable module supports hazardous agent-releasing applications programmed to the two releasing zones.

• 2.8” true color LCD
• 29 Input keys including a keypad with navigation buttons, alpha-numeric buttons, and Function buttons.
• 10 LED indicators, making it a highly intuitive fire alarm interface.
• Two releasing zones
• One signaling line circuits (SLC), Class A or Class B.
Supporting 252 intelligent devices
• Programmable via PC configuration software or Field programmable through front panel.
• Ethernet and USB ports for local programming and firmware upgrade.
• Supports remote annunciators’ network for wide system configurations and applications.
• Form C dry relay contacts dedicated for Alarm, Trouble, and Supervisory.
• Supports positive alarm sequence to avoid false alarms
• Supports an RS232 and RS485 connections
• Three-levels of password protection with field programmable definitions enable the installer to determine which functions are accessible at each password level
