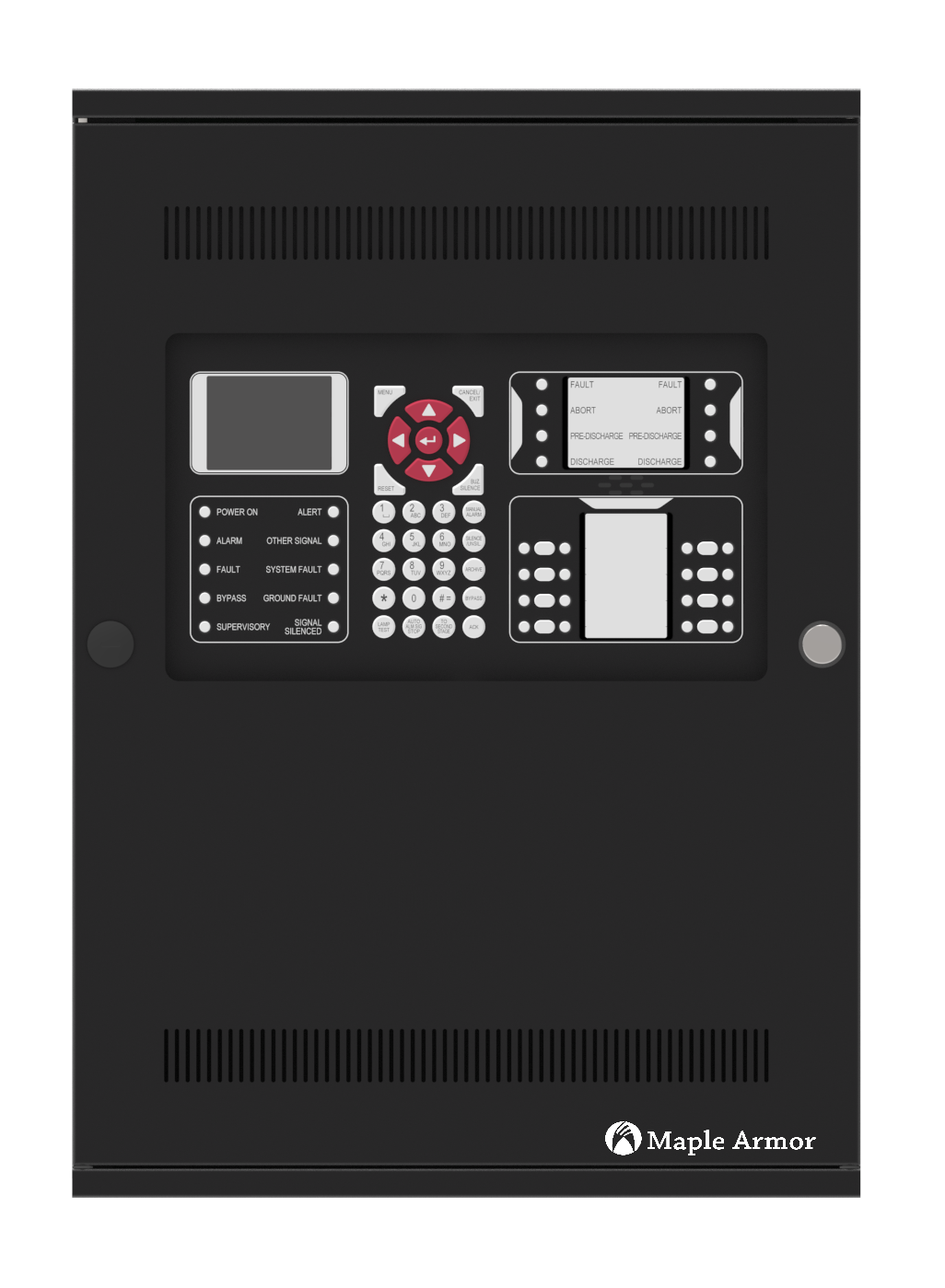

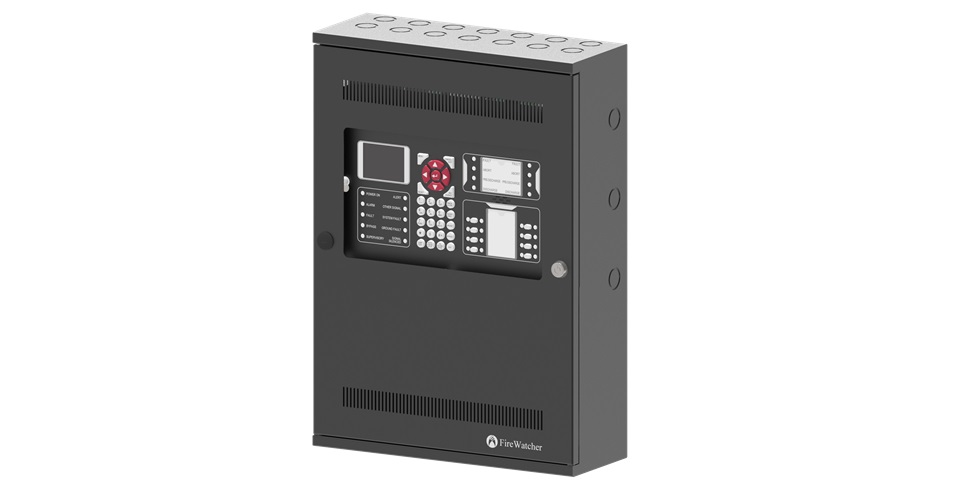

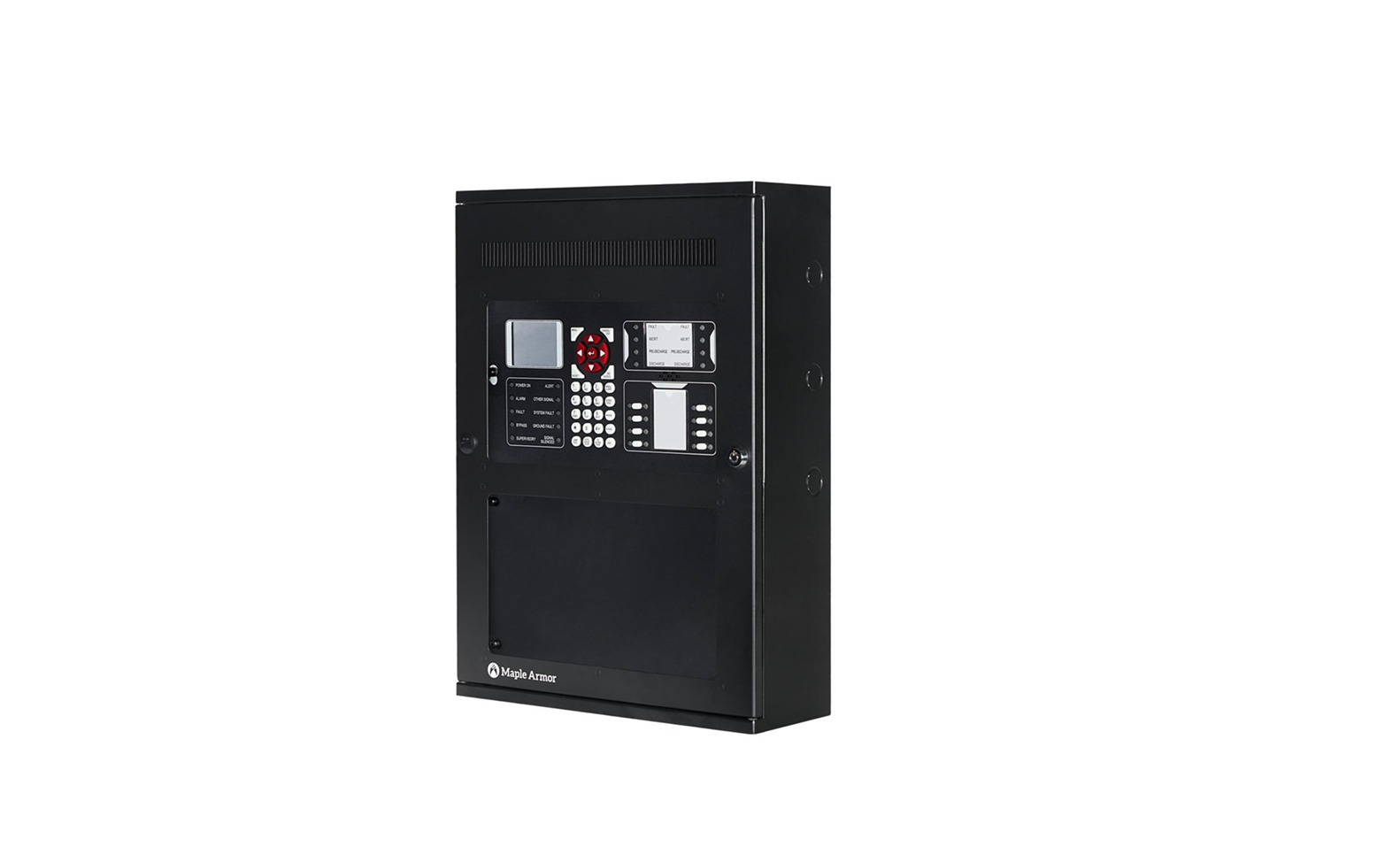

FW2107 is an Intelligent Fire Alarm Control Panel (FACP) designed for small and medium-scale facilities. The FACP is ideally suited for both new and retrofit commercial, institutional, and industrial fire detection and notification applications.

It is with dual hazard agent releasing that meets the requirements of UL 864, and CAN/ULC-S527.

The FACP supports up to 252 devices, 2 NACs and 3 Form-C relays (pre-programmed for Alarm, Trouble and Supervisory). In addition, the control panel can be used for hazard agent releasing application via the SLC loop.

- 1 Signaling Line Circuits and 252 addressable devices/points

- Up to 2 Notification Appliance Circuits

- 3 form C dry relay contacts

- 16 built in annunciator zones

- Up to 2 releasing zone

- A 2.8” true color LCD

- Up to 16 zone LED annunciator
