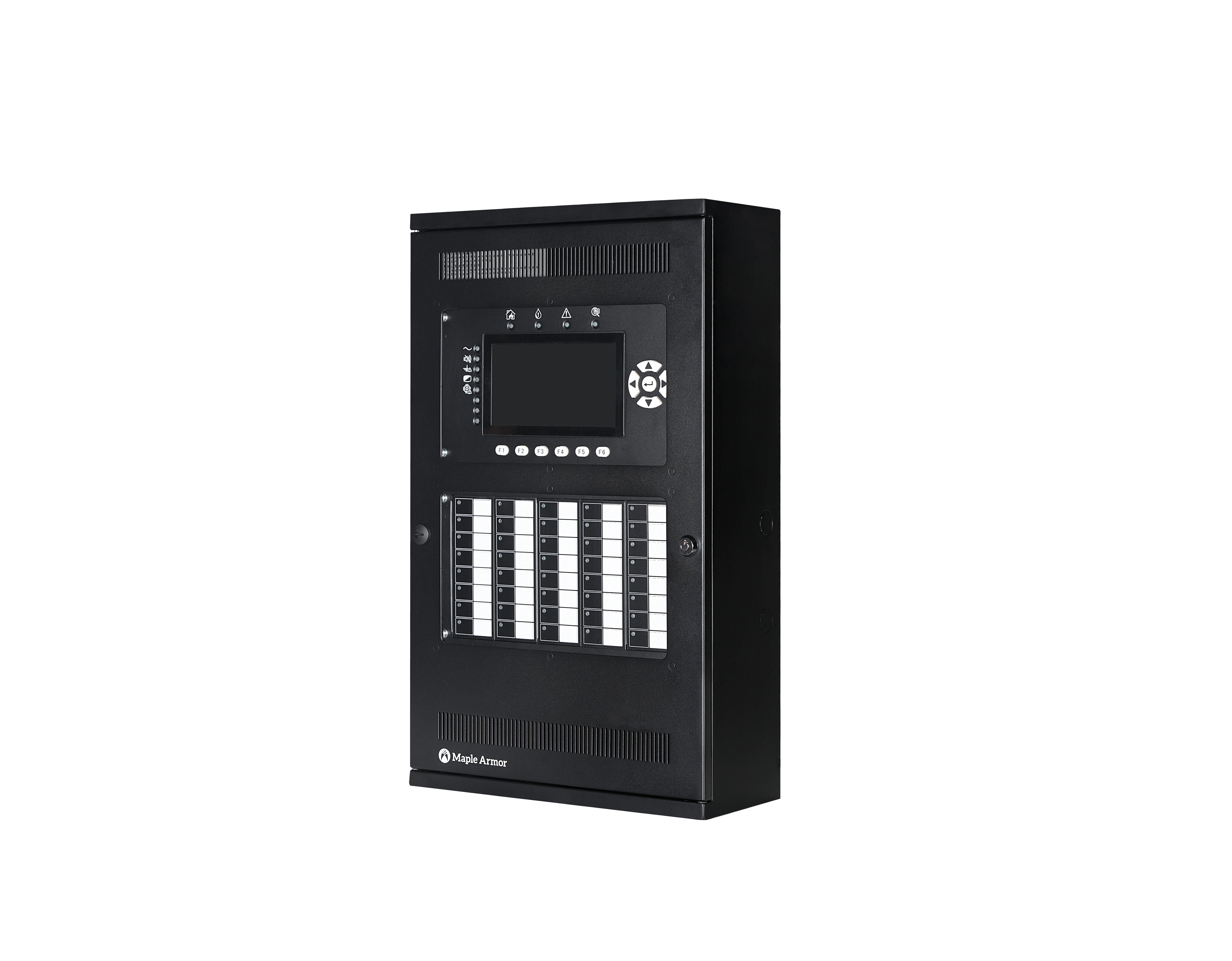

The FW2105 is an intelligent Fire Alarm Control Panel (FACP) designed for small to medium-scale facilities. The FW2105 is ideally suited for both new and retrofit commercial, institutional, and industrial fire detection and notification applications.

The FW2105 is a state-of-art addressable fire control system that meets the requirements of UL 864, and CAN/ULC-S527.

Key Features:

- Up to 9 Signaling Line Circuits and 2268 addressable devices/points

- Up to 12 Notification Appliance Circuits

- 4 form C dry relay contacts

- 8 Isolated SLC circuits

- A 7” color LCD with 800×480 resolution

- 12 LED indicators , 6 auxiliary function keys

- 1000+5000 events historical log

- Single-phase earth fault detection

- Manual alarm function

- PAS(Positive Alarm Sequence)function

- Two-Stage alarm function

- Silent inhabit function, 0~20 min available.

- Trouble/Supervisory Resound
