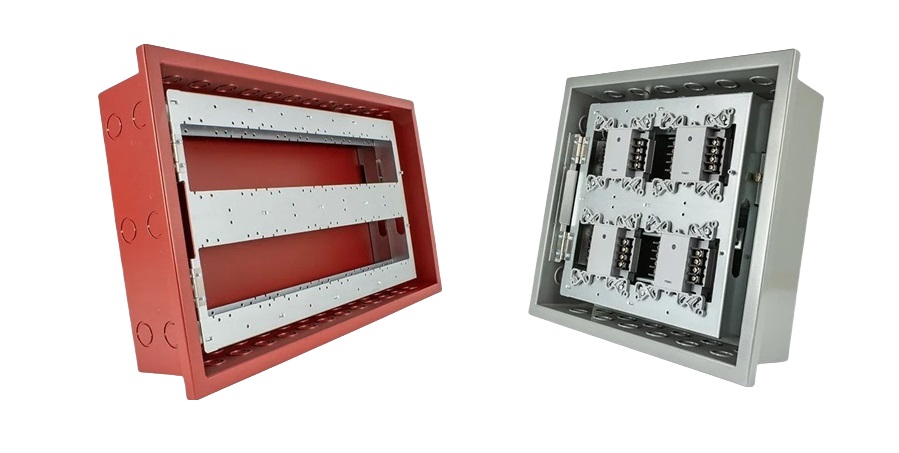

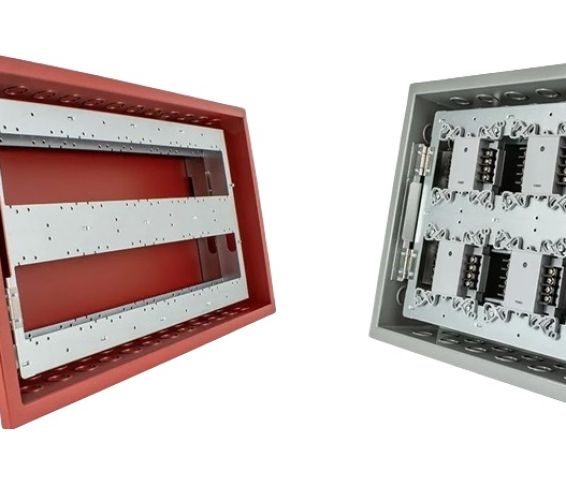

FW434

The FW434 is a module box that allows the installation of multiple Maple Armor modules into one cabinet. FW434 can fit up to 16 modules or 64 mini modules. It integrates an external door, two mounting plates, and a backbox.

The FW434 meets the UL864 10th Edition Listed standard and the ULC-S527 4th Edition Listed standard and the ULC-5527 4th Edition Listed standard.

The cabinet must be fastened securely to a clean, dry, shock-free, and vibration-free surface in a protected environment.

FW435

The FW435 is a module box that allows the installation of multiple Maple Armor modules into one cabinet. The FW435 can fit up to 8 modules or 16 mini modules. It integrates an external door, two mounting plates, and a backbox.

The FW435 meets the UL864 10th Edition Listed standard and the ULC-S527 4th Edition Listed standard and the ULC-5527 4th Edition Listed standard.

The cabinet must be fastened securely to a clean, dry, shock-free, and vibration-free surface in a protected environment.

FW434

• Weight:  9.8 kg

• Size (mm): 622 (W) × 114 (H) × 355.6 (D)

• Screw Type: #6-32

FW435

• Weight: 9.8 kg

• Size (mm): 381 (W) × 114 (H) × 355.6 (D)

• Screw Type: #6-32
