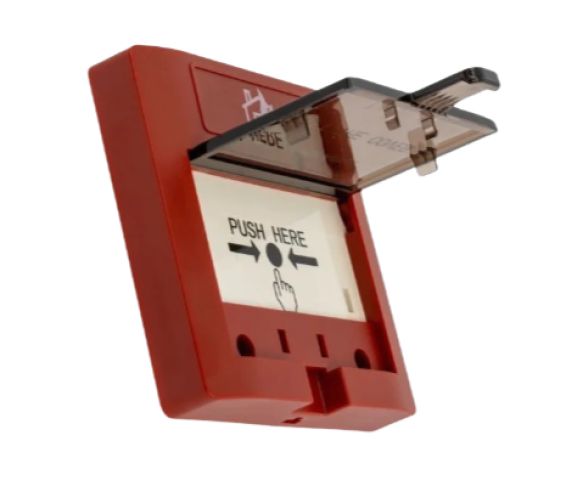

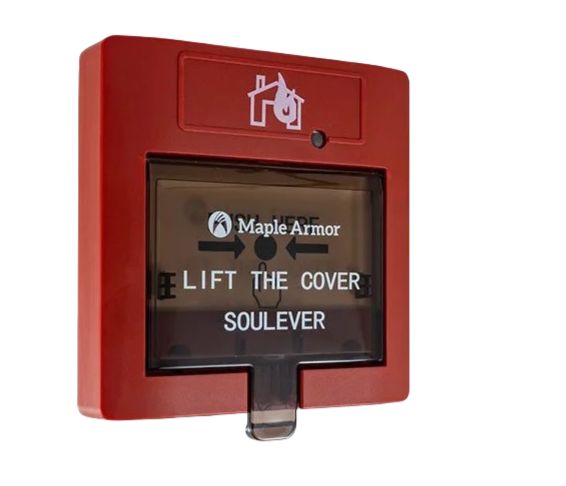

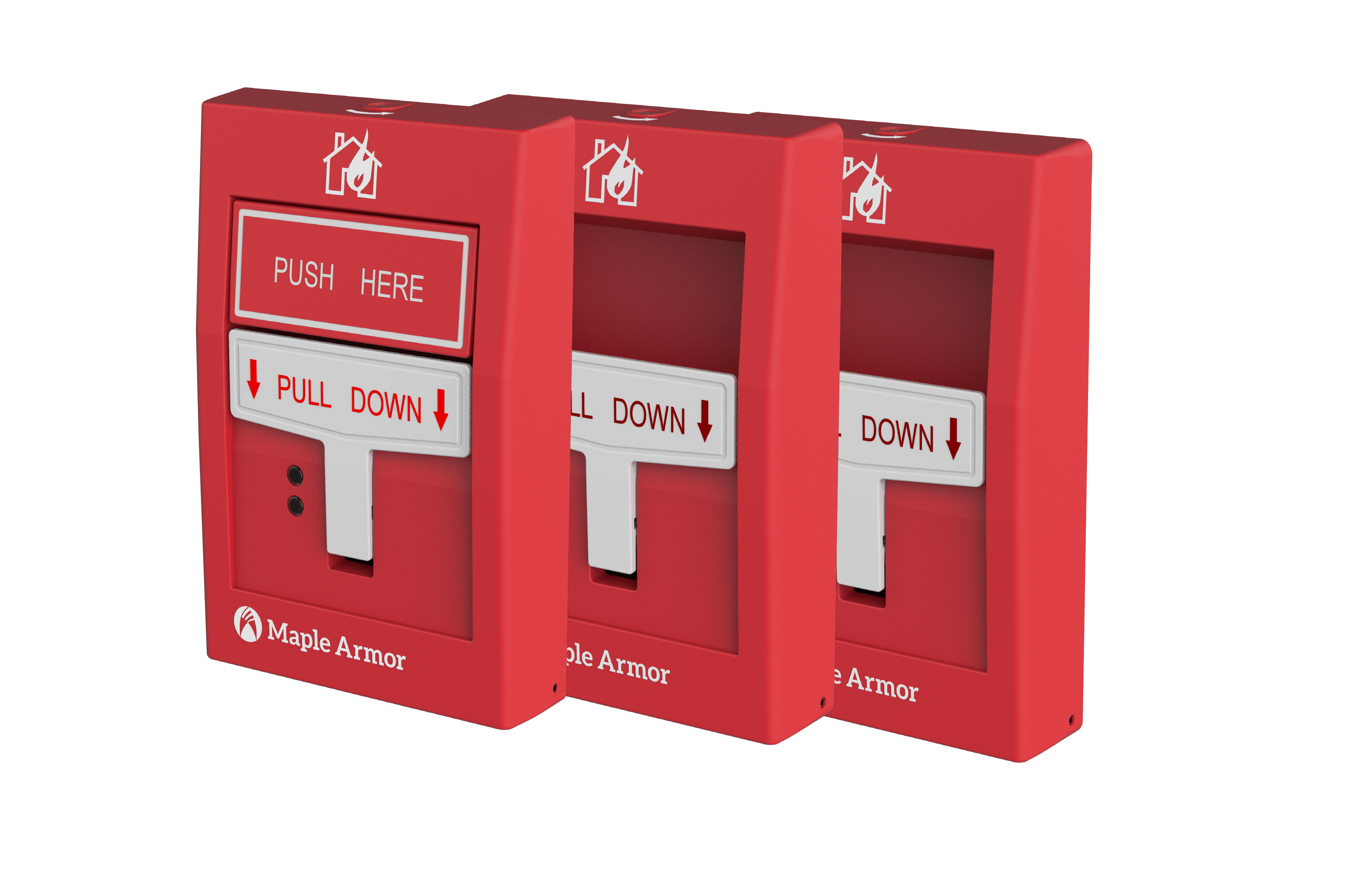

The FW272X series addressable Manual Pull Stations are UL listed devices according to UL 38 and ULC-S528 for Fire Protective Signaling Systems for indoor use. They made from durable materials and solid parts for long lasting performance.

The 272X series occupy a single address on the ALU and transmit alarm event status to the panel when activated.

The 272X series contain dry contact with normally open or normally close options available.

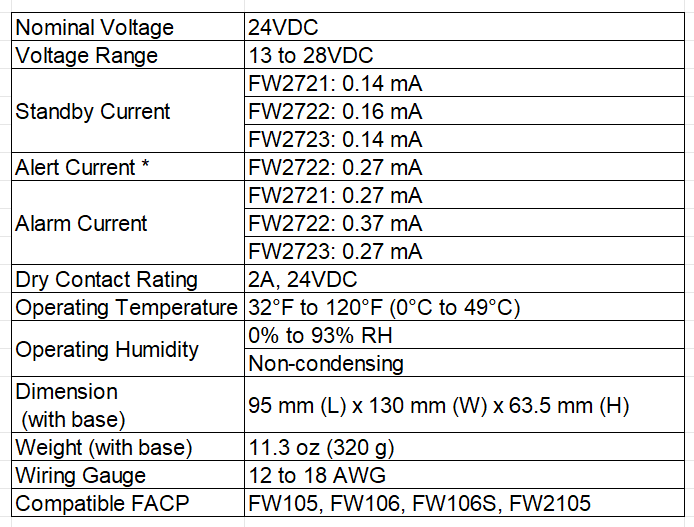

Specification

FW2721
-  Addressable dual action station
- Status LED Indicator
- Easy to use reset key
- Included dry contact(2A, 24VDC)
- Two Dry contact options (N/O or N/C)

FW2722
- Addressable  two-stage station
- 2 Status LED Indicators
- Easy to use reset key
- Included dry contact(2A, 24VDC)
- Two Dry contact options (N/O or N/C)

FW2723
-  Addressable  single action station
- Status LED Indicator
- Easy to use reset key
- Included dry contact(2A, 24VDC)
- Two Dry contact options (N/O or N/C)
